CARBON STEEL PIPE FITTINGS SPECIFICATIONS:
|
Specifications : ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
|
|
Range : ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
|
|
Variants : Carbon Steel Pipe Fittings
|
|
Type : Seamless / Welded / Fabricated
|
|
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
|
|
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43.
|
CARBON STEEL BUTTWELD PIPE FITTINGS
Seamless / Welded 100% Radiography Tested
|
Products
|
Size
|
|
Carbon Steel Elbows – Long Radius
|
Carbon Steel Stub Ends
|
Sizes 1/2″ – 48″
|
|
Carbon Steel Elbows – Short Radius
|
Carbon Steel Cross
|
|
Carbon Steel Reducing Elbows
|
Carbon Steel Reducing Crosses
|
|
Carbon Steel 45° Elbows
|
Carbon Steel 180° LR Return Bends
|
|
Carbon Steel Tees
|
Carbon Steel 180° SR Return Bends
|
|
Carbon Steel Tees
|
Carbon Steel Pipe Bends / Piggable Bends
|
|
Carbon Steel Reducers
|
Carbon Steel Seamless Fittings
|
|
Carbon Steel Concentric Reducers
|
Carbon Steel Pipe Nipples
|
|
Carbon Steel Eccentric Reducers
|
Carbon Steel 5D Elbow
|
|
Carbon Steel 3D Elbow
|

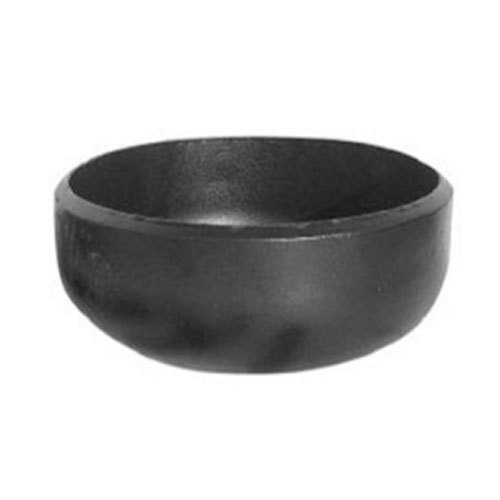

Carbon Steel End Caps
|
Ready Stock For Sale ASTM A860 WPHY 65 Bend, 30 Inch, MSS SP-75, Hot Induction Bend, ANSI B16.49, SCH STD, Bend Fitting, ASTM A234, A403, 45-180 Deg, 7D Pipe Bend, Carbon Steel, Stainless Steel, 3L HDPE 5D Bend, 36 Inch, API 5L X60, 3D Bend, Stainless Steel ASTM A234, A403, Carbon Steel 5D Pipe Bend, SCH 5-SCH 160, ASTM A860 Carbon Steel 7D Bend, 1/2-72 Inch, Pipe Olet, Pipe Nipples, Pipe Outlet Fittings, Socket Weld Fittings, Swage Nipples | Pipe Swage, Threaded Pipe Fittings, Pipe Olets India.
Pipe Elbow Specification
Pipe Elbow
Size : 1/2"NB TO 4"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) NPT, BSP, BSPT
Pipe Elbow Grades
Pipe Elbow
Stainless Steel Pipe Elbow “ SS Pipe Elbow
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Pipe Elbow - Duplex SS Pipe Elbow
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Pipe Elbow “ CS Pipe Elbow
ASTM A105 / A694 / Grade. F42 / GR 46 / GR 52 / GR 56 / GR 60 / GR 65 / GR 70
Low Temperature Carbon Steel Pipe Elbow “ LTCS Pipe Elbow
A350 LF3/A350 LF2
Alloy Steel Pipe Elbow “ AS Pipe Elbow
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Pipe Elbow Services
Pipe Elbow
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Mumbadevi Steel Wholesale Various High Quality Pipe Tee in all shapes and sizes and with any specifications that the clients, More then 1500 Clients in Worldwide, Ready Stock For Sale ASTM A860 WPHY 65 Bend, 30 Inch, MSS SP-75, Hot Induction Bend, ANSI B16.49, SCH STD, Bend Fitting, ASTM A234, A403, 45-180 Deg, 7D Pipe Bend, Carbon Steel, Stainless Steel, 3L HDPE 5D Bend, 36 Inch, API 5L X60, 3D Bend, Stainless Steel ASTM A234, A403, Carbon Steel 5D Pipe Bend, SCH 5-SCH 160, ASTM A860 Carbon Steel 7D Bend, 1/2-72 Inch, Pipe Olet, Pipe Nipples, Pipe Outlet Fittings, Socket Weld Fittings, Swage Nipples | Pipe Swage, Threaded Pipe Fittings, Pipe Olets India.
Pipe Tee
Pipe Tee Specification
Pipe Tee
Size : 1/2"NB TO 4"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Pipe Tee Grades
Pipe Tee
Stainless Steel Pipe Tee – SS Pipe Tee
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Pipe Tee - Duplex SS Pipe Tee
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Pipe Tee – CS Pipe Tee
ASTM A105 / A694 / Grade. F42 / GR 46 / GR 52 / GR 56 / GR 60 / GR 65 / GR 70
Low Temperature Carbon Steel Pipe Tee – LTCS Pipe Tee
A350 LF3/A350 LF2
Alloy Steel Pipe Tee – AS Pipe Tee
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Pipe Tee Services
Pipe Tee
VALUE ADDED SERVICES
Hot Dip Galvanizing
Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1
Butt Weld Concentric Reducer
Size : 1/2"NB TO 48"NB
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Butt Weld Concentric Reducer Grades
Butt Weld Concentric Reducer
Stainless Steel Butt Weld Concentric Reducer – SS Butt Weld Concentric Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Butt Weld Concentric Reducer – CS Butt Weld Concentric Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Elbow – LTCS Butt Weld Concentric Reducer
ASTM A420 WPL3 / A420WPL6
Alloy Steel Butt Weld Concentric Reducer – AS Butt Weld Concentric Reducer
ASTM / ASME A/SA 234 Gr.WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Stainless Steel Butt Weld Concentric Reducer - Duplex Steel Butt Weld Concentric Reducer
ASTM A 815 UNS NO S 31803 , S 32205. Butt Weld Concentric Reducer Dimension
Butt Weld Concentric Reducer
Dimensions Butt Weld Reducers Con & Ecc ASME B16.9
|
NPS
|
O.D.
D
|
O.D.
D1
|
Length
H
|
|
NPS
|
O.D.
D
|
O.D.
D1
|
Length
H
|
|
3/4 - 1/2
|
26.7
|
21.3
|
38
|
|
1 - 1/2
|
33.4
|
21.3
|
51
|
|
1 - 3/4
|
33.4
|
26.7
|
51
|
|
1¼ - 1/2
|
42.2
|
21.3
|
51
|
|
1¼ - 3/4
|
42.2
|
26.7
|
51
|
|
1¼ - 1
|
42.2
|
33.4
|
51
|
|
1½ - 1/2
|
48.3
|
21.3
|
64
|
|
1½ - 3/4
|
48.3
|
26.7
|
64
|
|
1½ - 1
|
48.3
|
33.4
|
64
|
|
1½ - 1¼
|
48.3
|
42.2
|
64
|
|
2 - 3/4
|
60.3
|
26.7
|
76
|
|
2 - 1
|
60.3
|
33.4
|
76
|
|
2 - 1¼
|
60.3
|
42.2
|
76
|
|
2 - 1½
|
60.3
|
48.3
|
76
|
|
2½ - 1
|
73
|
33.4
|
89
|
|
2½ - 1¼
|
73
|
42.2
|
89
|
|
2½ - 1½
|
73
|
48.3
|
89
|
|
2½ - 2
|
73
|
60.3
|
89
|
|
3 - 1¼
|
88.9
|
42.2
|
89
|
|
3 - 1½
|
88.9
|
48.3
|
89
|
|
3 - 2
|
88.9
|
60.3
|
89
|
|
3 - 2½
|
88.9
|
73
|
89
|
|
3½ - 1¼
|
101.6
|
42.2
|
102
|
|
3½ - 1½
|
101.6
|
48.3
|
102
|
|
3½ - 2
|
101.6
|
60.3
|
102
|
|
3½ - 2½
|
101.6
|
73
|
102
|
|
3½ - 3
|
101.6
|
88.9
|
102
|
|
4 - 1½
|
114.3
|
48.3
|
102
|
|
4 - 2
|
114.3
|
60.3
|
102
|
|
4 - 2½
|
114.3
|
73
|
102
|
|
4 - 3
|
114.3
|
88.9
|
102
|
|
4 - 3½
|
114.3
|
101.6
|
102
|
|
5 - 2
|
141.3
|
60.3
|
127
|
|
5 - 2½
|
141.3
|
73
|
127
|
|
5 - 3
|
141.3
|
88.9
|
127
|
|
5 - 3½
|
141.3
|
101.6
|
127
|
|
5 - 4
|
141.3
|
114.3
|
127
|
|
6 - 2½
|
168.3
|
73
|
140
|
|
6 - 3
|
168.3
|
88.9
|
140
|
|
6 - 3½
|
168.3
|
101.6
|
140
|
|
6 - 4
|
168.3
|
114.3
|
140
|
|
6 - 5
|
168.3
|
141.3
|
140
|
|
8 - 3½
|
219.1
|
101.6
|
152
|
|
8 - 4
|
219.1
|
114.3
|
152
|
|
8 - 5
|
219.1
|
141.3
|
152
|
|
8 - 6
|
219.1
|
168.3
|
152
|
|
10 - 4
|
273
|
114.3
|
178
|
|
10 - 5
|
273
|
141.3
|
178
|
|
10 - 6
|
273
|
168.3
|
178
|
|
10 - 8
|
273
|
219.1
|
178
|
|
12 - 5
|
323.9
|
141.3
|
203
|
|
12 - 6
|
323.9
|
168.3
|
203
|
|
12 - 8
|
323.9
|
219.1
|
203
|
|
12 - 10
|
323.9
|
273
|
203
|
|
14 - 6
|
355.6
|
168.3
|
330
|
|
14 - 8
|
355.6
|
219.1
|
330
|
|
14 - 10
|
355.6
|
273
|
330
|
|
14 - 12
|
355.6
|
323.9
|
330
|
|
16 - 8
|
406.4
|
219
|
356
|
|
16 - 10
|
406.4
|
273
|
356
|
|
16 - 12
|
406.4
|
323.9
|
356
|
|
16 - 14
|
406.4
|
355.6
|
356
|
|
18 - 10
|
457
|
273
|
381
|
|
18 - 12
|
457
|
323.9
|
381
|
|
18 - 14
|
457
|
355.6
|
381
|
|
18 - 16
|
457
|
406.4
|
381
|
|
20 - 12
|
508
|
323.9
|
508
|
|
20 - 14
|
508
|
355.6
|
508
|
|
20 - 16
|
508
|
406.4
|
508
|
|
20 - 18
|
508
|
457
|
508
|
|
22 - 14
|
559
|
355.6
|
508
|
|
22 - 16
|
559
|
406.4
|
508
|
|
22 - 18
|
559
|
457
|
508
|
|
22 - 20
|
559
|
508
|
508
|
|
24 - 16
|
610
|
406.4
|
508
|
|
24 - 18
|
610
|
457
|
508
|
|
24 - 20
|
610
|
508
|
508
|
|
24 - 22
|
610
|
559
|
508
|
|
26 - 18
|
660
|
457
|
610
|
|
26 - 20
|
660
|
508
|
610
|
|
26 - 22
|
660
|
559
|
610
|
|
26 - 24
|
660
|
610
|
610
|
|
28 - 18
|
711
|
457
|
610
|
|
28 - 20
|
711
|
508
|
610
|
|
28 - 24
|
711
|
610
|
610
|
|
28 - 26
|
711
|
660
|
610
|
|
30 - 20
|
762
|
508
|
610
|
|
30 - 24
|
762
|
610
|
610
|
|
30 - 26
|
762
|
660
|
610
|
|
30 - 28
|
762
|
711
|
610
|
|
32 - 24
|
813
|
610
|
610
|
|
32 - 26
|
813
|
660
|
610
|
|
32 - 28
|
813
|
711
|
610
|
|
32 - 30
|
813
|
762
|
610
|
|
34 - 24
|
864
|
610
|
610
|
|
34 - 26
|
864
|
660
|
610
|
|
34 - 30
|
864
|
762
|
610
|
|
34 - 32
|
864
|
813
|
610
|
|
36 - 24
|
914
|
610
|
610
|
|
36 - 26
|
914
|
660
|
610
|
|
36 - 30
|
914
|
762
|
610
|
|
36 - 32
|
914
|
813
|
610
|
|
36 - 34
|
914
|
864
|
610
|
|
38 - 26
|
965
|
660
|
610
|
|
38 - 28
|
965
|
711
|
610
|
|
38 - 30
|
965
|
762
|
610
|
|
38 - 32
|
965
|
813
|
610
|
|
38 - 34
|
965
|
864
|
610
|
|
38 - 36
|
965
|
914
|
610
|
|
40 - 30
|
1016
|
762
|
610
|
|
40 - 32
|
1016
|
813
|
610
|
|
40 - 34
|
1016
|
864
|
610
|
|
40 - 36
|
1016
|
914
|
610
|
|
40 - 38
|
1016
|
965
|
610
|
|
42 - 30
|
1067
|
762
|
610
|
|
42 - 32
|
1067
|
813
|
610
|
|
42 - 34
|
1067
|
864
|
610
|
|
42 - 36
|
1067
|
914
|
610
|
|
42 - 38
|
1067
|
965
|
610
|
|
42 - 40
|
1067
|
1016
|
610
|
|
44 - 36
|
1118
|
914
|
610
|
|
44 - 38
|
1118
|
965
|
610
|
|
44 - 40
|
1118
|
1016
|
610
|
|
44 - 42
|
1118
|
1067
|
610
|
|
46 - 38
|
1168
|
965
|
711
|
|
46 - 40
|
1168
|
1016
|
711
|
|
46 - 42
|
1168
|
1067
|
711
|
|
46 - 44
|
1168
|
1118
|
711
|
|
48 - 40
|
1219
|
1016
|
711
|
|
48 - 42
|
1219
|
1067
|
711
|
|
48 - 44
|
1219
|
1118
|
711
|
|
48 - 46
|
1219
|
1168
|
711
|
|
NPS
|
O.D.
D
|
O.D.
D1
|
Length
H
|
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9
|
Nominal Pipe Size
|
1/2 to 2½
|
3 to 3½
|
4
|
5 to 8
|
10 to 18
|
20 to 24
|
26 to 30
|
32 to 48
|
|
Outside Diameter
at Bevel (D)
|
+ 1.6
- 0.8
|
1.6
|
1.6
|
+ 2.4
- 1.6
|
+ 4
- 3.2
|
+ 6.4
- 4.8
|
+ 6.4
- 4.8
|
+ 6.4
- 4.8
|
|
Inside Diameter at End
|
0.8
|
1.6
|
1.6
|
1.6
|
3.2
|
4.8
|
+ 6.4
- 4.8
|
+ 6.4
- 4.8
|
|
Overall Length (H)
|
2
|
2
|
2
|
2
|
2
|
2
|
5
|
5
|
|
Wall Thickness (t)
|
Not less than 87.5% of Nominal Wall Thickness
|
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
ASME B16.9 Stub End Specification
|
Specifications
|
Stub End
|
|
Stub End Pipe Fittings size
|
Seamless Butt Weld Fittings: 1/2″ – 10″
Welded Butt Weld Fittings: 1/2″ – 48″
|
|
Stub End Dimensions
|
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
|
|
Stub End Thickness
|
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
|
|
Stub End Types
|
Seamless / ERW / Welded / Fabricated Pipe Fittings
|
|
Stub EndType
|
DN15-DN1200
|
|
Connection
|
Welding
|
|
Bending Radius
|
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
|
|
Size Range
|
½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
|
|
Stub End Fittings
|
Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
|
|
Manufacturing process
|
Push, Press, forge, Cast, etc.
|
|
Stub End Fittings Test Certificates
|
EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
|
|
Origin & Mills
|
Japanese, Indian, USA, Korean, European, Ukraine, Russian
|
|
Key markets and industries for Stub End
|
Bitumen upgraders.
Heavy oil refineries.
Nuclear power (mostly seamless).
Petrochemicals and acids.
|
Save up to 40% on Stainless Steel Long Neck Stub End. Visit Carbon Steel Stub End manufacturers’ factory in India, ask for Alloy Steel Stub End free sample
Pipe Stub End Material
|
Carbon Steel
|
ASTM A105
ASME SA105
DIN 1.0402
DIN 1.0460
DIN 1.0619
ASTM A105N
ASME SA105N
ASTM A350 LF2
ASME SA350
High Yield CS ASTM A694
|
|
Stainless Steel
|
ASTM A182 F304
ASTM A182 F304L
ASTM A182 F316
ASTM A182 F316L
ASTM A182 F317
ASTM A182 F317L
ASTM A182 F321
ASTM A182 F321H
ASTM A182 F347
ASTM A182 F347H
|
|
Alloy Steel
|
ASTM A182 F5
ASTM A182 F9
ASTM A182 F11
ASTM A182 F22
ASTM A182 F91
|
|
Inconel
|
Inconel 600
Inconel 601
Inconel 625
Inconel 718
Inconel x750
|
|
Copper
|
T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200,
C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
|
|
Copper Nickel
|
Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
|
|
Brass
|
3602 / 2604 / H59 / H62 / etc.
|
|
Hastelloy
|
Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
|
|
Monel
|
Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
|
|
Alloy 20
|
Carpenter® 20 Alloy, Alloy 20Cb-3
|
|
Aluminium
|
5052 /6061/ 6063 / 2017 / 7075 / etc.
|
|
Nickel
|
Nickel 200, Nickel 201
|
|
Duplex
|
S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
|
|
Super Duplex
|
S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
|
|
Incoloy
|
Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
|
|
254 Smo
|
SMO 254/6Mo, UNS S31254, DIN 1.4547
|
|
Nimonic
|
Nimonic 75, Nimonic 80A, Nimonic 90
|
|
Other material
|
Tin bronze, Alumunum bronze, Lead bronze
|
|
Titanium
|
ASTM B381 Titanium Gr. 1
ASTM B381 Titanium Gr. 2
ASTM B381 Titanium Gr. 4
ASTM B381 Titanium Gr. 5
ASTM B381 Titanium Gr. 7
|
Stockholder and distributor of an extensive range of Short Stub End, Alloy Steel Buttweld Short Stub End manufacturer
Short Stub End Dimension Chart
|
NOMINAL PIPE SIZE
|
OUTSIDE DIAMETEROF BARREL
|
LENGTH (F)
|
RADIUS (R)
|
DIAMETER (G)
|
|
MINIMUM
|
MAXIMUM
|
LONGPATTERN
|
SHORTPATTERN
|
|
1/2″
|
20.5
|
22.8
|
76
|
51
|
3
|
35
|
|
3/4″
|
25.9
|
28.1
|
76
|
51
|
3
|
43
|
|
1″
|
32.6
|
35.0
|
102
|
51
|
3
|
51
|
|
1 1/4″
|
41.4
|
43.6
|
102
|
51
|
5
|
64
|
|
1 1/2″
|
47.5
|
49.9
|
102
|
51
|
6
|
74
|
|
2″
|
59.5
|
62.4
|
152
|
64
|
8
|
92
|
|
2 1/2″
|
72.2
|
75.3
|
152
|
64
|
8
|
105
|
|
3″
|
88.1
|
91.3
|
152
|
64
|
10
|
127
|
|
3 1/2″
|
100.8
|
104.0
|
152
|
76
|
10
|
140
|
|
4″
|
113.5
|
116.7
|
152
|
76
|
11
|
157
|
|
5″
|
140.5
|
144.3
|
203
|
76
|
11
|
186
|
|
6″
|
167.5
|
171.3
|
203
|
89
|
13
|
216
|
|
8″
|
218.3
|
222.1
|
203
|
102
|
13
|
270
|
|
10″
|
272.3
|
277.2
|
254
|
127
|
13
|
324
|
|
12″
|
323.1
|
328.0
|
254
|
152
|
13
|
381
|
|
14″
|
354.8
|
359.9
|
305
|
152
|
13
|
413
|
|
16″
|
405.6
|
411.0
|
305
|
152
|
13
|
470
|
|
18″
|
456.0
|
462.0
|
305
|
152
|
13
|
533
|
|
20″
|
507.0
|
514.0
|
305
|
152
|
13
|
584
|
|
22″
|
558.0
|
565.0
|
305
|
152
|
13
|
641
|
|
24″
|
609.0
|
616.0
|
305
|
152
|
13
|
692
|
Producing high-strength Stainless Steel Short Stub End in India, contact Carbon Steel Short Stub End manufacturers
ANSI B16.9 Stub End Weight
|
STUB ENDS – ANSI B 16.9 and MSS SP-43 dimension
|
|
inches
|
ND
|
mm
|
Diameter of lap
|
Radius of fillet
|
Length F
|
|
D
|
G
|
R
|
R1
|
MSS SP43
|
ANSI B16.9
|
|
1/2
|
15
|
21,34
|
34,92
|
3,17
|
0,80
|
50,80
|
76,20
|
|
3/4
|
20
|
26,67
|
42,86
|
3,17
|
0,80
|
50,80
|
76,20
|
|
1
|
25
|
33,40
|
50,80
|
3,17
|
0,80
|
50,80
|
101,60
|
|
1 1/4
|
32
|
42,16
|
63,50
|
4,76
|
0,80
|
50,80
|
101,60
|
|
1 1/2
|
40
|
48,26
|
73,00
|
6,35
|
0,80
|
50,80
|
101,60
|
|
2
|
50
|
60,32
|
92,10
|
7,93
|
0,80
|
63,50
|
152,40
|
|
2 1/2
|
65
|
73,02
|
104,80
|
7,93
|
0,80
|
63,50
|
152,40
|
|
3
|
80
|
88,90
|
127,00
|
9,52
|
0,80
|
63,50
|
152,40
|
|
3 1/2
|
90
|
101,60
|
139,70
|
9,52
|
0,80
|
76,20
|
152,40
|
|
4
|
100
|
114,30
|
157,20
|
11,11
|
0,80
|
76,20
|
152,40
|
|
5
|
125
|
141,30
|
185,70
|
11,11
|
1,58
|
76,20
|
203,20
|
|
6
|
150
|
168,27
|
215,90
|
12,70
|
1,58
|
88,90
|
203,20
|
|
8
|
200
|
219,07
|
269,80
|
12,70
|
1,58
|
101,60
|
203,20
|
|
10
|
250
|
273,05
|
323,80
|
12,70
|
1,58
|
127,00
|
254,00
|
|
12
|
300
|
323,85
|
381,00
|
12,70
|
1,58
|
152,40
|
254,00
|
|
14
|
350
|
355,60
|
412,70
|
12,70
|
1,58
|
152,40
|
304,80
|
|
16
|
400
|
406,40
|
469,90
|
12,70
|
1,58
|
152,40
|
304,80
|
|
18
|
450
|
457,20
|
533,40
|
12,70
|
1,58
|
152,40
|
304,80
|
|
20
|
500
|
508,00
|
584,20
|
12,70
|
1,58
|
152,40
|
304,80
|
|
22
|
550
|
558,80
|
641,30
|
12,70
|
1,58
|
152,40
|
304,80
|
|
24
|
600
|
609,60
|
692,10
|
12,70
|
1,58
|
152,40
|
304,80
|
|
The lap thickness T shall not be less than nominal pipe wall thickness
|
SPECIFICATION - ASME B16.9 SEAMLESS WELDING FITTINGS
BUTTWELD END CAP
|
Standards:
|
ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
|
|
Schedule:
|
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
|
|
Sizes:
|
1/2"NB TO 48"NB IN
|
|
Materials:
|
Stainless Steel End Cap – SS End Cap
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel End Cap – CS End Cap
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel End Cap – LTCS End Cap
ASTM A420 WPL3 / A420WPL6
Alloy Steel End Cap – AS End Cap
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
|
|
Type:
|
Butt Weld (BW)
|
|
Dimension:
|
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
|
DIMENSIONS BUTTWELD END CAP
|
NPS
|
O.D.
D
|
Len
H
|
W.T.
t
|
Len
H1
|
|
1/2
|
21.3
|
25
|
4.57
|
25
|
|
3/4
|
26.7
|
25
|
3.81
|
25
|
|
1
|
33.4
|
38
|
4.57
|
38
|
|
1¼
|
42.2
|
38
|
4.83
|
38
|
|
1½
|
48.3
|
38
|
5.08
|
38
|
|
2
|
60.3
|
38
|
5.59
|
44
|
|
2½
|
73
|
38
|
7.11
|
51
|
|
3
|
88.9
|
51
|
7.62
|
64
|
|
3½
|
101.6
|
64
|
8.13
|
76
|
|
4
|
114.3
|
64
|
8.64
|
76
|
|
5
|
141.3
|
76
|
9.65
|
89
|
|
6
|
168.3
|
89
|
10.92
|
102
|
|
8
|
219.1
|
102
|
12.7
|
127
|
|
10
|
273
|
127
|
12.7
|
152
|
|
12
|
323.8
|
152
|
12.7
|
178
|
|
14
|
355.6
|
165
|
12.7
|
191
|
|
16
|
406.4
|
178
|
12.7
|
203
|
|
NPS
|
O.D.
D
|
Len
H
|
W.T.
t
|
Len
H1
|
|
18
|
457
|
203
|
12.7
|
229
|
|
20
|
508
|
229
|
12.7
|
254
|
|
22
|
559
|
254
|
12.7
|
254
|
|
24
|
610
|
267
|
12.7
|
305
|
|
26
|
660
|
267
|
...
|
...
|
|
28
|
711
|
267
|
...
|
...
|
|
30
|
762
|
267
|
...
|
...
|
|
32
|
813
|
267
|
...
|
...
|
|
34
|
864
|
237
|
...
|
...
|
|
36
|
914
|
267
|
...
|
...
|
|
38
|
965
|
305
|
...
|
...
|
|
40
|
1016
|
305
|
...
|
...
|
|
42
|
1067
|
305
|
...
|
...
|
|
44
|
1118
|
343
|
...
|
...
|
|
46
|
1168
|
343
|
...
|
...
|
|
48
|
1219
|
343
|
...
|
...
|
MARKING AND PACKING
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
QUALITY ASSURANCE
At Mumbadevi Steel, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
TEST CERTIFICATES
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Repor
SPECIFICATION - ASME B16.9 SEAMLESS WELDING FITTINGS
BUTTWELD PIPE NIPPLE
|
Standards:
|
NSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
|
|
Schedule:
|
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
|
|
Sizes:
|
1/2"NB TO 48"NB IN
|
|
Materials:
|
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy c276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel:
Grade: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
|
|
Type:
|
Butt Weld (BW)
|
|
Dimension:
|
ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
|
DIMENSIONS BUTTWELD PIPE NIPPLE
|
S.40 Stainless Steel Pipe Nipple
Dimensions: Unit：mm
|
|
SIZE
|
1/8"
|
1/4"
|
3/8"
|
1/2"
|
3/4"
|
1"
|
|
S
|
1.7
|
2.0
|
2.0
|
2.5
|
2.5
|
3.2
|
|
L
|
40.0
|
40.0
|
40.0
|
60.0
|
60.0
|
60.0
|
|
SIZE
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
|
S
|
3.2
|
3.2
|
3.6
|
3.6
|
4.0
|
4.5
|
|
L
|
80.0
|
80.0
|
100.0
|
100.0
|
120.0
|
120.0
|
MARKING AND PACKING
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
QUALITY ASSURANCE
At Mumbadevi Steel all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
TEST CERTIFICATES
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

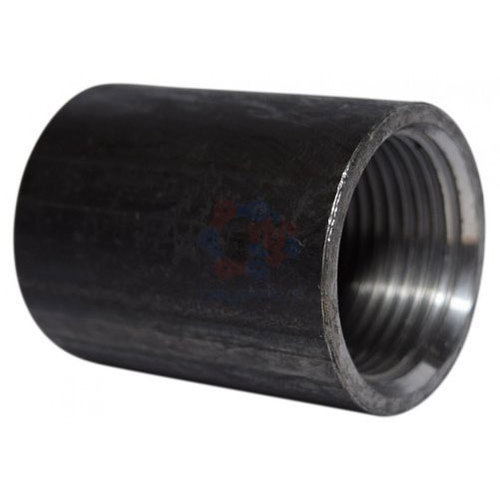

Butt-welded Fitting Coupling Specifications
|
Butwelded Type
|
Butt-welded Fitting Coupling Standared
|
|
Type Of Outlets
|
|
|
Size
|
1/2"NB TO 48"NB IN
|
|
Schedule
|
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
|
|
Type
|
Seamless / ERW / Welded / Fabricated
|
|
Grades
|
|
|
Nickel Alloy
|
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
|
|
Stainless Steel
|
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
|
|
Carbon Steel
|
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 and WPHY 70.
|
|
Alloy Steel
|
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.
|
|
Duplex Steel
|
ASTM A 815 UNS NO S 31803 , S 32205.
|
CARBON STEEL BUTTWELD PIPE FITTINGS APPLICATION INDUSTRIES
Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Sea Water Equipment
Heat Exchangers
Condensers
Gas Processing
Specialty Chemicals
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Pulp and Paper Industry
OTHER TYPES OF ANSI B16.9 CARBON STEEL PIPE FITTINGS
|
Carbon Steel Seamless Pipe Fittings
|
Carbon Steel Welded Pipe Fittings
|
|
Carbon Steel Butt Weld Pipe Fittings
|
Carbon Steel ASME B16.9 Elbow
|
|
CS 45 Degree Elbow
|
CS 90 Degree Elbow
|
|
ASME B16.28 CS 180 Degree Elbow
|
ASME B16.9 CS Long Radius Elbow (LR Elbow)
|
|
ANSI B16.9 Short Radius Elbow(SR Elbow)
|
ANSI B16.28 90° Long Radius Elbow
|
|
MSS-SP-43 90° Short Radius Elbow
|
Carbon Steel 45° Long Radius Elbow
|
|
Carbon Steel 45° Short Radius Elbow
|
Carbon Steel 180° Long Radius Elbow
|
|
Carbon Steel 180° Short Radius Elbow
|
ASME B16.9 Carbon Steel 1D Elbow
|
|
Carbon Steel 1.5D Elbow
|
Carbon Steel 3D Elbow
|
|
Carbon Steel ASTM B16.9 5D Elbow
|
Carbon Steel ASTM B16.28 Tees
|
|
ANSI B16.9 Carbon Steel Equal Tee
|
ASTM B16.28 Carbon Steel Unequal/Reducing Tee
|
|
MSS-SP-43 Carbon Steel Reducer
|
Carbon Steel Concentric Reducer
|
|
Carbon Steel Eccentric Reducer
|
Carbon Steel Cross
|
|
Carbon Steel Equal Cross
|
Carbon Steel Unequal/Reducing Cross
|
|
Carbon Steel Stub Ends
|
Carbon Steel Long Stub End
|
|
Carbon Steel Short Stub End
|
Carbon Steel Lap Joint Stub End
|
|
Carbon Steel End Caps
|
Carbon Steel Seamless Pipe Bend
|
|
Carbon Steel Welded Pipe Bend
|
Carbon Steel 3D Pipe Bend
|
|
Carbon Steel 5D Pipe Bend
|
Carbon Steel 10D Pipe Bend
|
|
Carbon Steel Long Radius Pipe Bend
|
Carbon Steel Hot Induction Pipe Bend
|
|
Carbon Steel J Pipe Bend
|
Carbon Steel Mitered Pipe Bend
|
|
Carbon Steel Piggable Pipe Bend
|
Carbon Steel U Pipe Bend
|
Enquire now at msi@mumbadevisteel.com or Call Us on +91 900 413 7234
