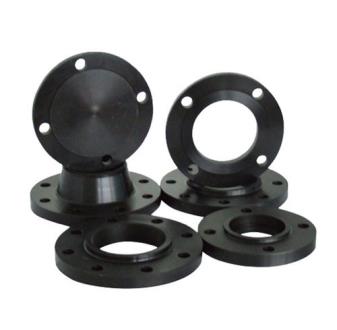

Carbon Steel Flanges

Carbon Steel Flanges
Carbon Steel Flanges

Flanges indeed have a role in connecting pipes or joining them mechanically that ensure robust joint to prevent leakage. Mumbadevi Steel India – one of the noted Carbon Steel Flanges Manufacturers in Mumbai, Maharashtra, has flanges to suit varied application needs. Whether you want Steel Flanges for pressure vessel, valves, pumps or other equipment, their versatility makes them suitable for high-pressure situations. Carbon Steel products appreciated by clients for their seamless finish and durability.

Merits Of Our Carbon Steel Flanges:

  • Less ductile.
  • Highly durable.
  • Easy to install and maintain.
  • Can balance ductility and strength.
  • Corrosion and chemical resistance.
  • Hold the pipe in high-pressure situations.
  • Used in fittings, flanges, valves and other parts.
  • Precise dimensions of offered flanges make them suitable for multiple applications.
  • Have good wear resistance, which makes them suitable for automotive components and other applications.

Make Our Experts A Call!

We firmly believe that every customer has their part in increasing our brand’s credibility, and we pay the best possible efforts to keep them satisfied with our range. We are one of the well-established Carbon Steel Flanges Exporters and Suppliers in India. Call our executives to talk further regarding the same.

We Have A Huge Selection Of Carbon Steel Threaded Flange,Slip On Flanges, Plate Flange, RTJ Flange And WNRF Flange At Low Prices In India

Buy BS 4504 Carbon Steel Forged Flange, ANSI B16.5 Carbon Steel Blind Flange, ANSI B16.48 Carbon Steel Long Weld Neck Flange At Factory Price In India

According to the content of carbon in its alloy, these steels are classified into Three groups of carbon steels:

Low carbon steels (C < 0.25%)

Medium carbon steels (C =0.25% to 0.55%)

High carbon steels (C > 0.55%)

Chemically, Low carbon steels contain less than 0.25% carbon in their alloy. While they cannot be strengthened by heat-treating  the alloy, the carbon steel threaded flange can be strengthened through cold working). Although low carbon material is relatively soft and weak, the alloy has outstanding ductility and toughness. Additionally, it has good machineability, good formability and weldability. They are also relatively inexpensive to produce and the carbon steel flange price is lower.

Medium carbon steels have carbon content falling in a range of 0.25% and 0.60%. These steels may be heat-treated by austenizing, quenching, and followed by tempering in order to improve their mechanical properties. The heat-treated medium carbon steels provide tremendous load carrying ability and have good toughness and ductility. They have relatively good strength, can be hardened by quenching.

24" 150# Carbon Steel Flange | 48" 150# Carbon Steel Flange | 36" 300# MS Flange ANSI B16.5 | 16" 600# CS Flange | 30" 900# A105 CS Flange | A105 48" 150# Slip On Flange | A105N 36" 300 LBS CS Slip On Flange | 24" 150# ASTM A350 LF2 LTCS Flanges | 48" 150# ASTM A350 LF2 Slip On Flange | 36" 300# A350 LF2 Flanges ANSI B16.5 | 16" 600# ASTM A350 LF2 CS Flange | 30" 900# ASTM A350 LF2 CS Flange | A350 LF2 48" 150# Slip On Flange | A350 LF2 Flanges

Carbon Steel Flanges Specifications



Specifications

ASTM A105 / ASME SA105, A105N

ASME B16.5 Carbon Steel Flanges size range

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Carbon Steel Flanges Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.

Carbon Steel Flanges Standard ANSI

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Carbon Steel Flanges Standard DIN

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

Carbon Steel Flanges Standard JIS

5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

Carbon Steel Flanges Standard UNI

6Bar 10Bar 16Bar 25Bar 40Bar

Carbon Steel Flanges Standard EN

6Bar 10Bar 16Bar 25Bar 40Bar

Main Types

Forged / Threaded / Screwed / Plate

Flange supporting material

Gasket, Ring Joint, Flange Bolts

Carbon Steel Pipe Flanges Test Certificates

EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc

Most common types of Carbon Steel Flanges

Weld Neck Ring Flange (WNRF), Carbon Steel Flanges

Slip-On Ring Flange (SORF), Carbon Steel Flanges

Blind Ring Flange (BLRF), Carbon Steel Flanges

Socket Weld Ring Flange (SWRF), Carbon Steel Flanges

Threaded Ring Flange, Carbon Steel Flanges

Lap Joint Ring Flange (LJRF), Carbon Steel Flanges

Ring Type Joint Flange (RTJF), Carbon Steel Flanges

Production technique

Forged, Heat treated and machined

Connect Type/ Flange Face Type

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove

Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Carbon Steel Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Equipment

Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

Origin

Indian / West Europe / Japan / USA / Korean

Specialized manufacturer of

Rtj Flanges

Pn16 Flanges

DIN 2566 pn16

DIN 2566 en 1092 1

DIN 2566 pn10

Carbon Steel Large Diameter Flanges

Carbon Steel Sorf Flanges

Carbon Steel Blind Flanges

Carbon Steel Table Flanges

Carbon Steel Weld Neck Flanges

Carbon Steel Threaded Flanges

Carbon Steel Slip-On Flanges

Carbon Steel Socketweld Flanges

Carbon Steel Plate Flanges

Carbon Steel Lap Joint Flanges

Carbon Steel Loose Flanges

Carbon Steel Orifice Flanges

Carbon Steel AS 4087 Water Flanges

Carbon Steel Flanges Standard

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

B.S: BS4504 , BS3293, BS1560, BS10

AS 2129: Table D; Table E; Table H

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48

ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

American standard (ANSI)

German (DIN)

British standard (BS)

Any other specilised flanges

DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276

Key markets and industries for Carbon Steel Flanges

Bitumen upgraders.

Heavy oil refineries.

Nuclear power (mostly seamless).

Petrochemicals and acids.

Export to

Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc

Carbon Steel Flanges Application

To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of Carbon Steel Flanges

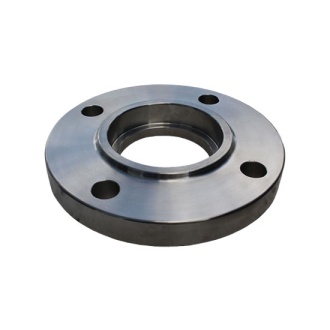

Carbon Steel Slip On Flanges

Carbon Steel Raised Face Slip On Flanges
Carbon Steel Slip On Plate Flanges
Carbon Steel Slip On Flanges
Carbon Steel SORF Flanges
ASME SA105 Slip On Flanges

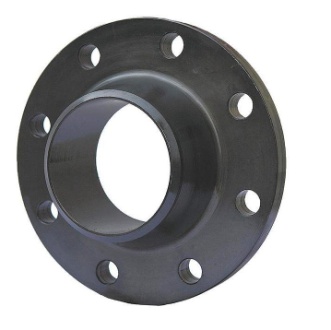

Carbon Steel Weld Neck Flanges

Carbon Steel Raised Face Weld Neck Flanges
ASTM A105 Carbon Steel WNRF Flange

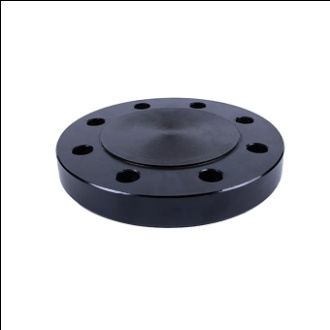

Carbon Steel Blind Flanges

Carbon Steel Raised Face Blind Flanges
Carbon Steel Blind Flange
ASTM A105 Carbon Steel BLRF Flanges

Carbon Steel Orifice Flanges

Carbon Steel Orifice Flanges
CS Orifice Flanges
ASTM A105 Carbon Steel Orifice Flanges

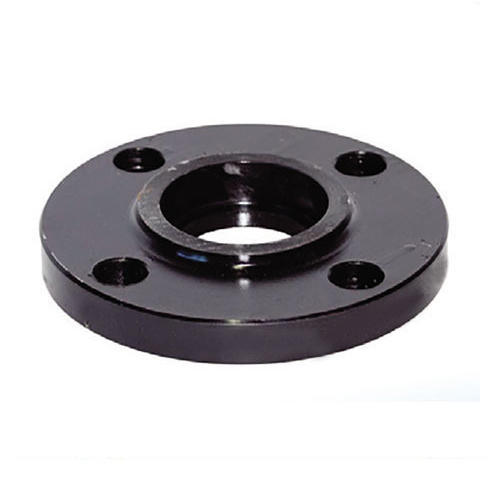

Carbon Steel Socket weld Flanges

Carbon Steel Socket weld Flanges
CS Socket weld Flanges
Carbon Steel SWRF Flanges
ASME SA105 Carbon Steel Socket weld Flanges

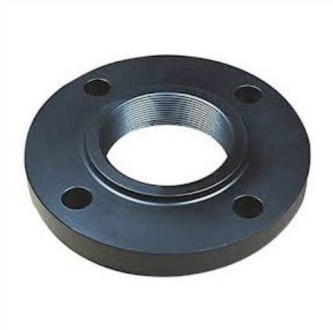

Carbon Steel Threaded Flanges

Carbon Steel Threaded Flanges
CS Threaded Flanges
ASTM A105 Carbon Steel Threaded Flanges

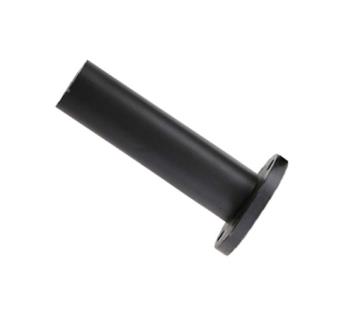

Carbon Steel Long weld Neck Flanges

Carbon Steel Long weld Neck Flanges
CS Long weld Neck Flanges
ASTM A105 Carbon Steel Long weld Neck Flanges

Carbon Steel RTJ Flanges

Carbon Steel Ring Type Joint Flanges
CS Ring Type Joint Flange
ASTM A105 Carbon Steel RTJ Flanges
Carbon Steel RTJ Flanges

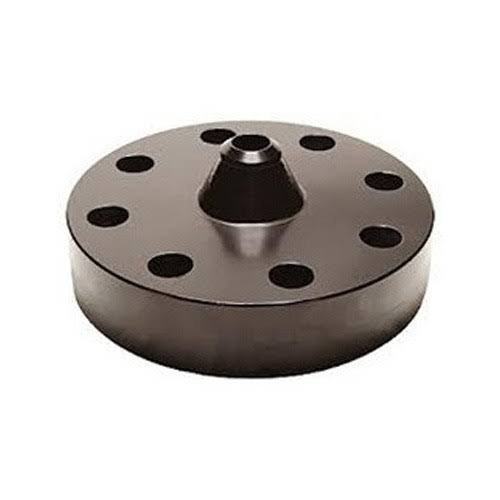

Carbon Steel Reducing Flanges

Carbon Steel Reducing Flanges
CS Reducing Flanges
ASTM A105Carbon Steel Reducing Flanges

Carbon Steel Forged Flanges

Carbon Steel Forged Flanges
CS Forged Flange
ASTM A105 Carbon Steel Forged Flanges

Carbon Steel Flanges Standards / Types And Pressure Class :

ASME/ANSI B 16.5

Threaded Flange, Ring Type Joint Flange, Blind Flange, Welding Neck Flange, Slip on Flange,High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange

PRESSURE CLASS

150, 300, 400, 600, 900, 1500, 2500

ASME/ANSI B 16.47

Blind Flange [Series A & B], Welding Neck Flange

PRESSURE CLASS

75, 150, 300, 400, 600, 900

ASME/ANSI B 16.36

Slip on Flange, Welding Neck Flange, Threaded Flange

PRESSURE CLASS

300, 400, 600, 900, 1500, 2500

DIN FLANGES

DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673

PRESSURE CLASS

PN 6 TO PN 100

BS 4504 SEC 3.1

Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange

PRESSURE CLASS

PN 2.5 TO PN 40

BS 4504[PART 1]

Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded

PRESSURE CLASS

PN 2.5 TO PN 400

BS 1560 BOSS

Blind Flange, Screwed Boss Flange, Lapped FlangeWelding Neck Flange, Socket Welding Flange, Slip-On Flange

PRESSURE CLASS

150, 300, 400, 600, 900, 1500, 2500

BS10

Blind Flange, Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange

TABLE

D, E, F, H

Carbon Steel Industrial Flanges

A105 Carbon Steel Flange Types

Size

Carbon Steel Slip-On Flanges

Carbon Steel Weld Neck Flanges

Sizes 1/2″ – 48″
Raised Face or Flat Face

Carbon Steel Threaded Flanges

Carbon Steel Socket Weld Flanges

Carbon Steel Plate Flanges

Carbon Steel Reducing Flanges

Carbon Steel Lap Joint Flanges

Carbon Steel Blind Flanges

Carbon Steel Square Flanges

Carbon Steel Ring Type Joint Flanges

Carbon Steel Forged Flanges

Carbon Steel Orifice Flanges

Carbon Steel Flanges Dimensions in mm /Carbon Steel Large Diameter Flanges Weight Chart

CS Flange Weights by Pressure Class and Size

Pipe Size

150 #

300 #

600 #

900 #

1500 #

2500 #

WN

SO

BLD

WN

SO

BLD

WN

SO

BLD

WN

SO

BLD

WN

SO

BLD

WN

SO

BLD

1/2"

2

1

1

2

1

1

2

2

2

SEE 1500 # WEIGHTS

5

4

4

7

7

7

3/4"

2

2

2

3

3

3

4

3

3

SEE 1500 # WEIGHTS

6

5

6

8

8

8

1"

3

2

2

4

3

3

4

4

4

SEE 1500 # WEIGHTS

9

8

8

12

11

11

1 1/2"

4

3

3

7

6

6

8

7

8

SEE 1500 # WEIGHTS

13

12

13

25

22

23

2"

6

5

5

9

7

8

12

9

10

SEE 1500 # WEIGHTS

25

25

25

42

37

39

2 1/2"

8

7

7

12

10

12

18

13

15

SEE 1500 # WEIGHTS

36

36

35

52

55

56

3"

10

8

9

15

13

16

23

16

20

31

26

29

48

48

48

94

83

86

4"

15

13

17

25

22

27

42

37

41

53

53

54

73

73

73

145

125

130

5"

19

15

20

32

28

35

68

63

68

86

83

87

130

130

140

245

210

225

6"

24

19

26

42

39

50

81

80

86

110

110

115

165

165

160

380

325

345

8"

39

30

45

67

58

81

120

115

140

175

170

200

275

260

300

580

485

530

10"

52

43

70

91

81

124

190

170

230

260

245

290

455

435

510

1075

930

1025

12"

80

64

110

140

115

185

225

200

295

325

325

415

690

580

690

1525

1100

1300

14"

110

90

140

180

165

250

280

230

355

400

400

520

940

NA

975

NA

NA

NA

16"

140

98

180

250

190

295

390

330

495

495

425

600

1250

NA

1300

NA

NA

NA

18"

150

130

220

320

250

395

475

400

630

680

600

850

1625

NA

1750

NA

NA

NA

20"

180

165

285

400

315

505

590

510

810

830

730

1075

2050

NA

2225

NA

NA

NA

22"

225

185

355

465

370

640

720

590

1000

NA

NA

NA

NA

NA

NA

NA

NA

NA

24"

260

220

430

580

475

790

830

730

1250

1500

1400

2025

3325

NA

3625

NA

NA

NA

Conversion Data



• 1 inch = 25.44 mm

• 1 mm = 0.03937 inches

• 1 lb/ft^2 = 47.88 Pa

• 1 psi = 6.8948 Pa

• x°F = (5/9)(x-32)°C

• 1 pound = 0.45359 Kg

• 1 Kg = 2.20462 pounds

• 1 Pa = 0.020885 lb/ft^2

• 1 Pa = 0.00014504 psi

• x°C = (9/5)x + 32°F

Carbon Steel Flanges Weight Chart



Standard

Class

Diameter

Bolt Circle Diameter

Number of Bolts

Bolt Size

Diameter of Bolt Hole

AS4087

PN14

95

67

4

M12

14

AS 2129 Flanges

Table C

95

67

4

13

14

Table D

95

67

4

13

14

Table E

95

67

4

13

14

Table F

95

67

4

13

14

Table H

114

83

4

16

17

Table J

114

83

4

16

17

ANSI B16.5

ANSI 150

89

60

4

13

16

ANSI 300

95

67

4

13

16

ANSI 600

95

67

4

13

16

ANSI 900

121

83

4

19

22

ANSI 1500

121

83

4

19

22

ISO 7005 (DIN) Flange

PN6

80

55

4

M10

11

PN10

95

65

4

M12

14

PN16

95

65

4

M12

14

PN20

90

60.5

4

M14

16

PN25

95

65

4

M12

14

PN40

95

65

4

M12

14

Carbon Steel Flanges Pressure Ratings



Flanges pressure rating in psig for common carbon steel ASME flanges
( A105 / A350 LF2 / A350 LF3 / A350 LF6)

Temperature (F°)

150#

300#

400#

600#

900#

1500#

2500#

-20 to 100

285

740

985

1480

2220

3705

6170

200

260

680

905

1360

2035

3395

5655

300

230

655

870

1310

1965

3270

5450

400

200

635

845

1265

1900

3170

5280

500

170

605

805

1205

1810

3015

5025

600

140

570

755

1135

1705

2840

4730

650

125

550

730

1100

1650

2745

4575

700

110

530

710

1060

1590

2655

4425

750

95

505

675

1015

1520

2535

4230

800

80

410

550

825

1235

2055

3430

850

65

320

425

640

955

1595

2655

900

50

230

305

460

690

1150

1915

950

35

135

185

275

410

685

1145

1000

20

85

115

170

255

430

715

ASTM A105 Flange standard

ANSI B 16.5, ANSI B16.45, JIS B2220, DIN2633, ASME, ASTM, JIS , DIN , EN, etc.

ASTM A105 Flange material

Q235, 20#, Q345A105, ST37.0, ST35.8, St37.2, St35.4/8, St42, St45, St52, St52.4STP G38,STP G42,STPT42, STB42, STS42, STPT49, STS49

ASTM A105 Flange properties

Chemical composition, mechanical properties and pressure-temperature ratings for ASTM A105 flanges.

Chemical Composition Requirements of ASTM A105

Element

Composition,%

Carbon (C)

0.35max

Manganese (Mn)

0.60–1.05

Phosphorus (P)

0.035max

Sulfur (S)

0.040max

Silicon (Si)

0.10–0.35

Copper (Cu)

0.40max

Nickel (Ni)

0.40max

Chromium (Cr)

0.30max

Molybdenum (Mo)

0.12max

Vanadium (V)

0.08max

Mechanical Properties of ASTM A105

Mechanical Properties

Requirements

Tensile strength,min,psi [MPa]

70000 [485]

Yield strength,min,psi [MPa]

36000 [250]

Elongation, min, %

30

Reductionofarea,min,%

30

Hardness,HB,max

187

Carbon Steel Flanges Other Types



A105 Carbon Steel RTJ Flanges

Carbon Steel A105 BLRF Flanges

Carbon Steel A105 SORF Flanges

Carbon Steel A350 Split Flanges Stockist

Carbon Steel A105 Puddle Flanges

ASME SA105 Carbon Steel Reducing Flanges Wholesaler

Carbon Steel SAE Flanges

ASTM A694 Carbon Steel Exhaust Flanges

Carbon Steel Screwed Flanges Exporter

ASME SA105 Carbon Steel Tank Flanges

Carbon Steel A694 Flanges

Carbon Steel WNRF Flanges Supplier

Carbon Steel Flanges Manufacturer

EN 1092-1 Flanges

Carbon Steel Flanges Available Types & Shapes



Carbon Steel Pipe Flanges

Carbon Steel Raised Face Slip On Flanges

Carbon Steel Exhaust Flanges

Carbon Steel Slip On Plate Flanges

Carbon Steel Header Flanges

Carbon Steel Slip On Flanges

Carbon Steel Plate Flanges

Carbon Steel Pipe Flanges

Carbon Steel Backing Flanges

Carbon Steel Exhaust Flanges

Carbon Steel Tube Flanges

Carbon Steel Header Flanges

Carbon Steel Stub End Flanges

Carbon Steel Raised Face Weld Neck Flanges

Carbon Steel Shower Rod Flanges

Carbon Steel Sae Flanges

Carbon Steel Slip On Flanges

Carbon Steel Weld Neck Flanges

Carbon Steel Screwed Flanges

Carbon Steel Clad Flanges

Carbon Steel Socket Weld Flanges

Carbon Steel WNRF Flanges

Carbon Steel Sbc Header Flanges

Carbon Steel Raised Face Blind Flanges

Carbon Steel Split Flanges

Carbon Steel Blind Flanges

Carbon Steel Slip-On Pipe Flanges

Carbon Steel Blind Flanges

Carbon Steel Square Flanges

Carbon Steel Ansi Flanges

Ansi 150 Carbon Steel Flanges

Carbon Steel BLRF Flanges

Carbon Steel Blank Flanges

Carbon Steel Orifice Flanges

Carbon Steel Bsp Flanges

Carbon Steel Orifice Flanges

Carbon Steel Companion Flanges

Carbon Steel Orifice Flanges

Carbon Steel Class 150 Flanges

Carbon Steel Duct Flanges

Carbon Steel Cover Flanges

Carbon Steel Orifice Flanges

Custom Carbon Steel Flanges

Carbon Steel Socket weld Flanges

Class 600 Carbon Steel Flanges

Carbon Steel Socket weld Flanges

Carbon Steel Din Flanges

Carbon Steel Socket weld Flanges

Large Diameter Carbon Steel Flanges

Carbon Steel SWRF Flanges

Table E Carbon Steel Flanges

ASME B16.5 Carbon Steel Socket weld Flanges

Carbon Steel Floor Flanges

Carbon Steel Threaded Flanges

Carbon Steel Forged Flanges

Carbon Steel Threaded Flanges

Gaskets For Carbon Steel Flanges

Carbon Steel Threaded Flanges

Carbon Steel Handrail Flanges

Carbon Steel Manifold Flanges

High Pressure Carbon Steel Flanges

Carbon Steel Threaded Flanges

Carbon Steel Lap Joint Flanges

Carbon Steel Threaded Flanges

Carbon Steel Long Weld Neck Flanges

Carbon Steel Long weld Neck Flanges

Carbon Steel Metric Flanges

Carbon Steel Long weld Neck Flanges

Carbon Steel Muffler Flanges

Carbon Steel Long weld Neck Flanges

Carbon Steel Pump Flanges

Carbon Steel Orifice Flanges

Carbon Steel Pressed Flanges

Carbon Steel Ring Type Joint Flanges

Carbon Steel Puddle Flanges

Carbon Steel Ring Type Joint Flanges

Carbon Steel Pad Flanges

Carbon Steel RTJ Flanges

Carbon Steel Reducing Flanges

Carbon Steel RTJ Flanges

Carbon Steel Raised Face Flanges

Carbon Steel RTJ Flanges

Carbon Steel Ring Flanges

BS4504 Carbon Steel RTJ Flanges

Carbon Steel Threaded Reducing Flanges

Carbon Steel Reducing Flanges

Carbon Steel Wnrf Flanges

Carbon Steel Reducing Flanges

Carbon Steel Split Flanges

Carbon Steel Reducing Flanges

Carbon Steel Turbo Flanges

Carbon Steel Forged Flanges

Carbon Steel Vacuum Flanges

Carbon Steel Reducing Flanges

Carbon Steel Reducing Flanges

Carbon Steel Forged Flanges

 Enquire now at msi@mumbadevisteel.com or Call Us on +91 900 413 7234

Enquire Now

Copyright © 2009-2022 Mumbadevi Steel India. All Rights Reserved.
